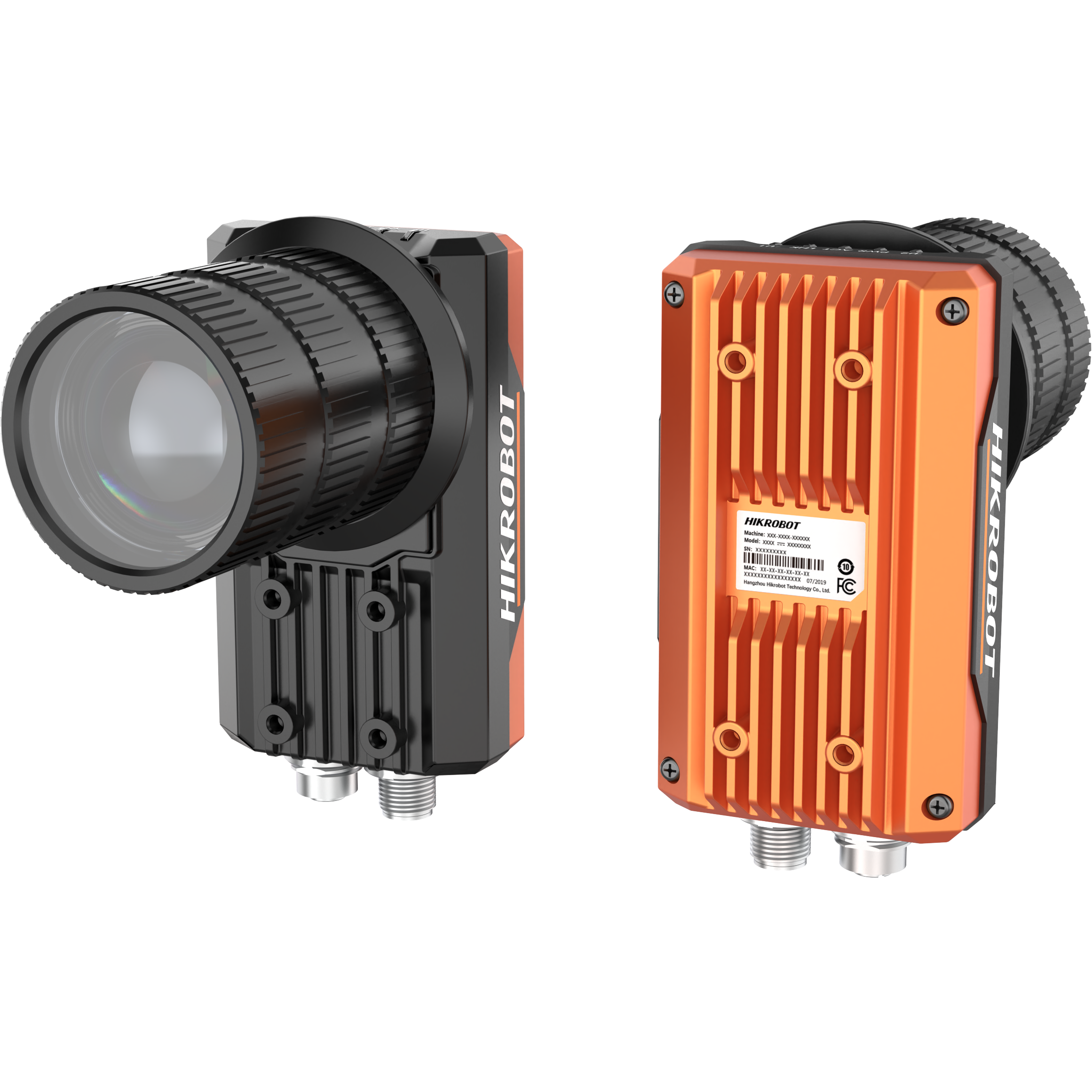

HIKROBOT(하이크로봇) MV-SC5060M-00C-NNN

주요특징

• 일반적인 비전 알고리즘을 통합하여 위치, 측정, 인식 등을 달성합니다.
• 대용량 메모리와 스토리지는 고성능으로 루프에서 이미지 절감을 지원합니다.
• 제어를 위해 여러 I/O 인터페이스를 채택합니다.
• 여러 통신 프로토콜을 지원합니다.
• 장치 상태를 표시하는 표시기를 지원합니다.

제품스펙

Camera	Resolution	3072 × 2048
	Pixel size	2.4 µm × 2.4 µm
	Exposure time	16 μs to 1 sec
	Mono/color	Mono
	Max. frame rate	30 fps
	Sensor type	CMOS, rolling shutter
	Sensor size	1/1.8"
	Gain	0 dB to 15 dB
	Pixel format	Mono 8
Model	Product Model	MV-SC5060M-00C-NNN
	Type	SC5000 series Smart Camera, 6MP，No Light，C-Mount ，Mono
General	Certification	CE, FCC, KC
	Client software	SCMVS
Platform	Storage	32 GB
	Memory	8 GB
Mechanical	Weight	Approx. 470 g (1.0 lb.)
	Lens cap	Transparent lens cap
	Humidity	20% to 95% RH, non-condensing
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Light source	Not included
	Dimension	109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3")
	Lens mount	C-mount
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Indicator	Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).
Electrical feature	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (Line 0/1/2) × 3, opto-isolated output (Line 3/4/5) × 3, and RS-232 × 1
	Power consumption	Approx. 7.5 W@24 VDC
	Data interface	GigE
	Power supply	24 VDC
Tool	Communication protocol	RS-232, TCP, UDP, FTP, Profinet, ModBus, EtherNet/IP
	Vision tool	Count: Pattern count, spot count, edge count Defect detection: Exception detection Existence: Pattern existence, spot existence, edge existence, circle existence, line existence Location: Match location, match calibration Logic tool: If module, condition judge, logic judge, combination judge, character comparison, calculator Measurement: L2L angle, diameter measurement, brightness analysis, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurement Recognition: OCR, code recognition
	Solution capacity	Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored.

Dimension
